CENTRIFUGES

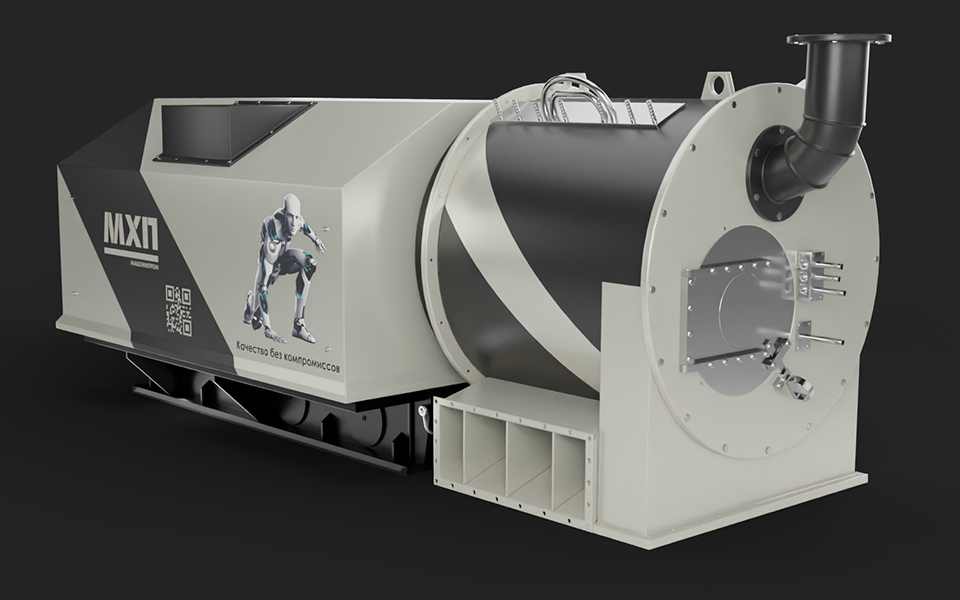

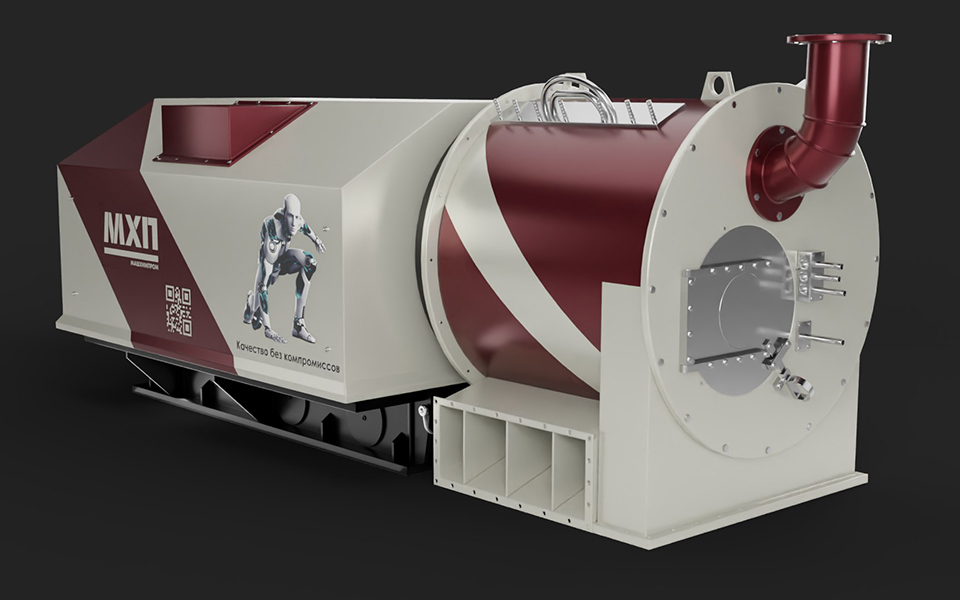

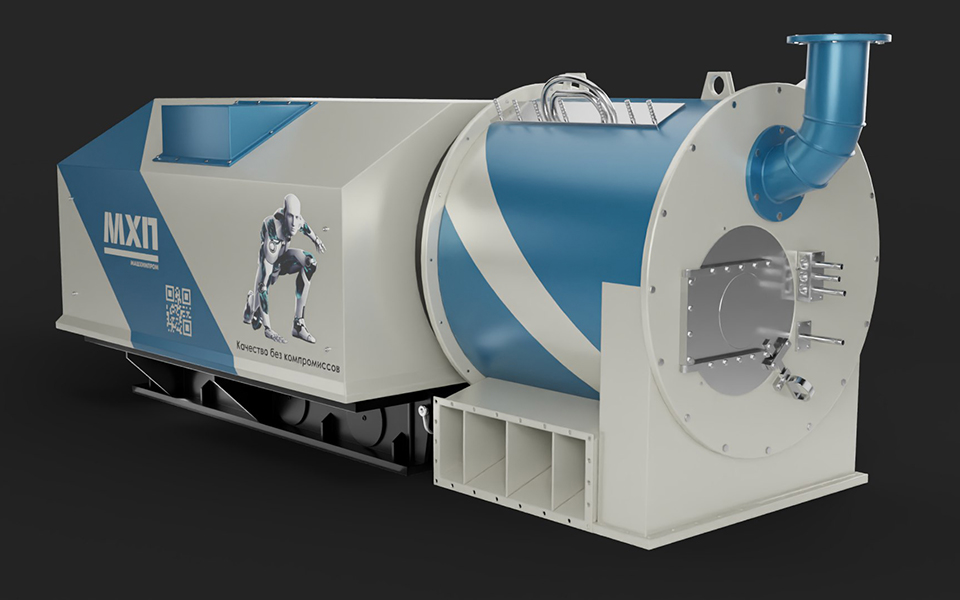

THE TWO-STAGE CENTRIFUGE WITH PULSATING DISCHARGE IS A TWO-STAGE CHEMICAL AND TECHNOLOGICAL EQUIPMENT DESIGNED TO SEPARATE THE SUSPENSION INTO SOLID AND LIQUID PHASES UNDER THE ACTION OF CENTRIFUGAL FORCE.
Our centrifuges are designed for continuous operation in fully automatic mode. The robust construction guarantees, in addition to reliable operation, a long service life of the machine.
OPERATING PRINCIPLE
The slurry is fed into a rapidly rotating drum through a special distribution device. Under the action of centrifugal force, the product is separated into solid and liquid phases, resulting in the formation of a cake (dehydrated product) and fugate (removed liquid). The filtered cake is held on the slot screen of the basket as a sediment and, due to the oscillatory movements of the pusher, is gradually transported to the unloading zone. The filtered mother liquor is removed from the centrifuge casing to the mother liquor receiver via a hydro-mechanical cyclone. During operation, the largest part of the liquid (approximately 80%) is filtered out in the loading area of the basket of the first stage, the second stage of the centrifuge provides an overall increase in machine productivity by up to 25%.
TECHNICAL CHARACTERISTICS OF THE MACHINES:
Type of centrifuge
CPU-8
CPU-10
CPU-20
CPU-30
CPU-35
CPU-40
CPU-50
Drum diamerer
400
500
630
800
900
1000
1200
Number ot steps
1-2
1-2
1-3
1-4
1-4
1-4
1-4
Max. rotor speed, min-1
2600
2100
1900
1500
1330
1200
900
Max. number of pulsations, min-1
80
80
80
80
80
80
76
Operating weight without vibration isolation, kg
2100
3100
4900
8000
8500
12000
13000
Length, mm
2450
2800
3200
3800
3800
4350
4350
Width, mm
1250
1400
1700
2000
2000
2300
2300
Height without vibration isolation, mm
1100
1350
1300
1550
1600
1900
1970
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ МАШИН:
Drum diamerer
400
Number ot steps
1-2
Max. rotor speed, min-1
2600
Max. number of pulsations, min-1
80
Operating weight without vibration isolation, kg
2100
Максимальная производительность, т/ч
10
Length, mm
2450
Width, mm
1250
Height without vibration isolation, mm
1100
Drum diamerer
500
Number ot steps
1-2
Max. rotor speed, min-1
2100
Max. number of pulsations, min-1
80
Operating weight without vibration isolation, kg
3100
Максимальная производительность, т/ч
18
Length, mm
2800
Width, mm
1400
Height without vibration isolation, mm
1350
Drum diamerer
630
Number ot steps
1-3
Max. rotor speed, min-1
1900
Max. number of pulsations, min-1
80
Operating weight without vibration isolation, kg
4900
Максимальная производительность, т/ч
30
Length, mm
3200
Width, mm
1700
Height without vibration isolation, mm
1300
Drum diamerer
800
Number ot steps
1-4
Max. rotor speed, min-1
1500
Max. number of pulsations, min-1
80
Operating weight without vibration isolation, kg
8000
Максимальная производительность, т/ч
50
Length, mm
3800
Width, mm
2000
Height without vibration isolation, mm
1550
Drum diamerer
800
Number ot steps
1-4
Max. rotor speed, min-1
1500
Max. number of pulsations, min-1
80
Operating weight without vibration isolation, kg
8000
Максимальная производительность, т/ч
50
Length, mm
3800
Width, mm
2000
Height without vibration isolation, mm
1550
Drum diamerer
1000
Number ot steps
1-4
Max. rotor speed, min-1
1200
Max. number of pulsations, min-1
80
Operating weight without vibration isolation, kg
12000
Максимальная производительность, т/ч
70
Length, mm
4350
Width, mm
2300
Height without vibration isolation, mm
1900
Drum diamerer
1200
Number ot steps
1-4
Max. rotor speed, min-1
900
Max. number of pulsations, min-1
76
Operating weight without vibration isolation, kg
13000
Максимальная производительность, т/ч
85
Length, mm
4350
Width, mm
2300
Height without vibration isolation, mm
1970
