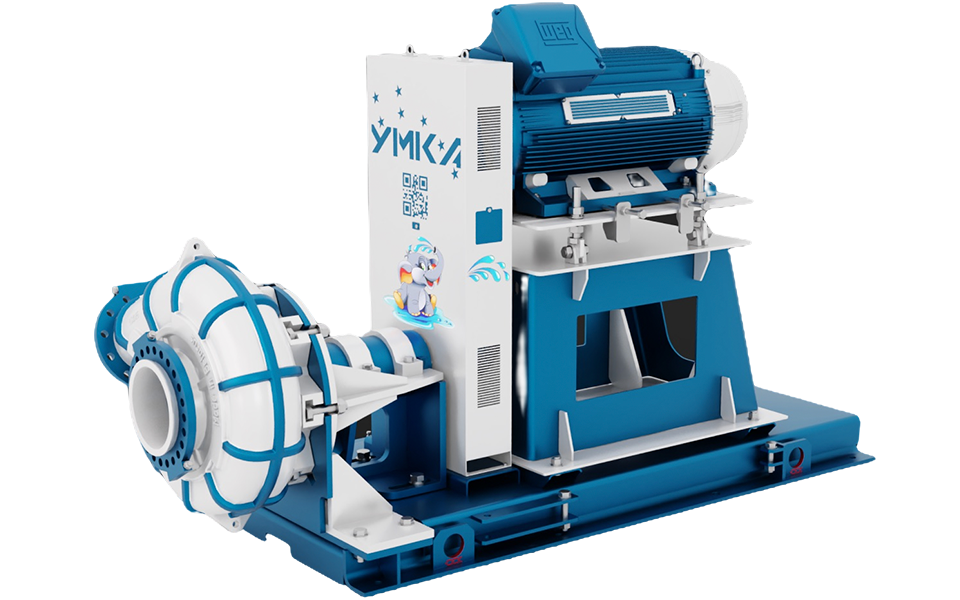

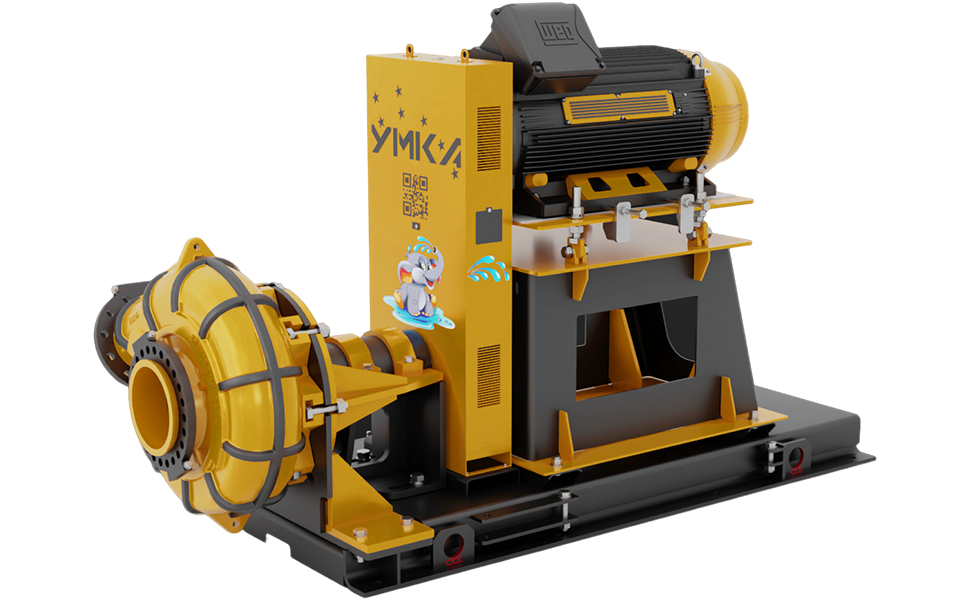

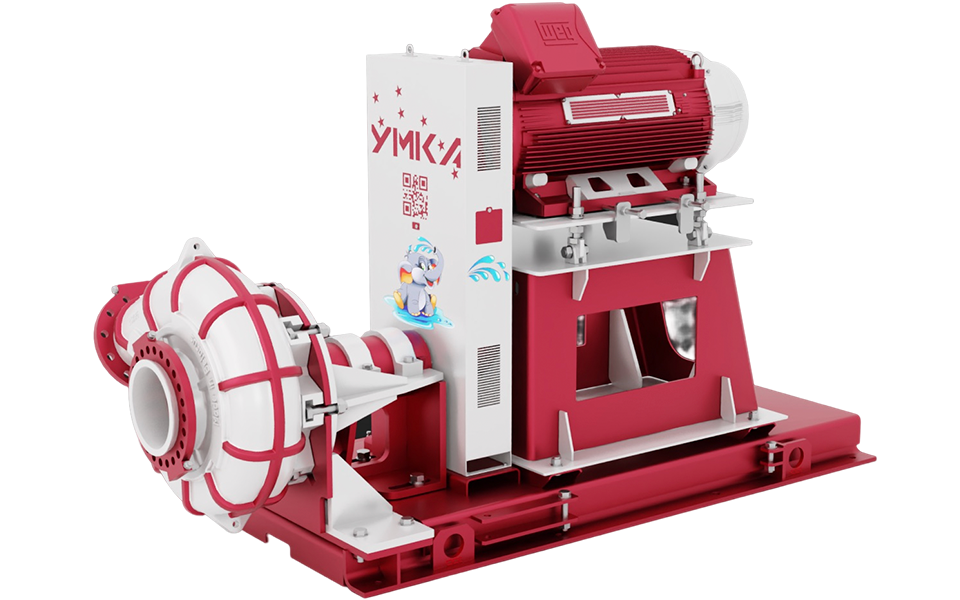

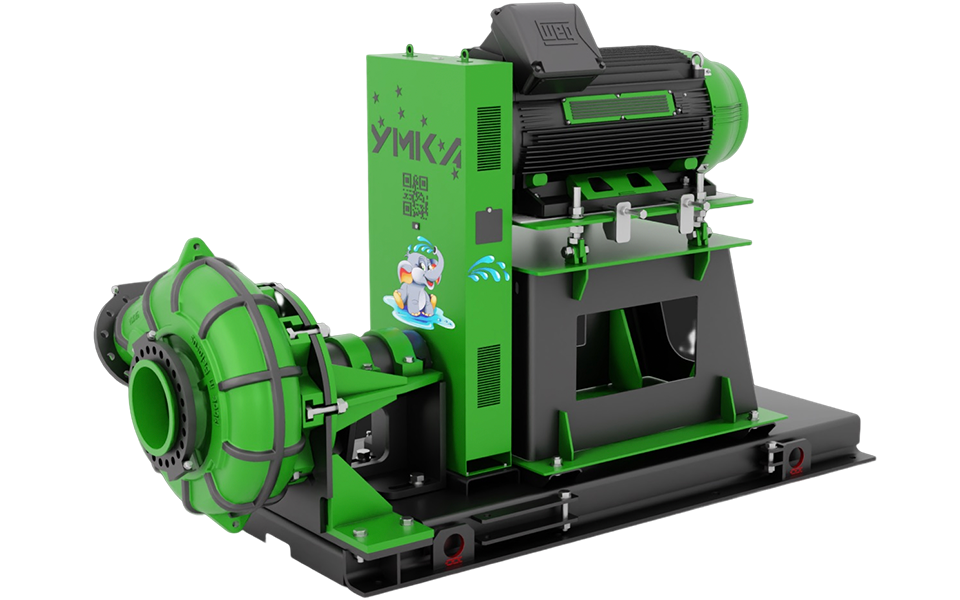

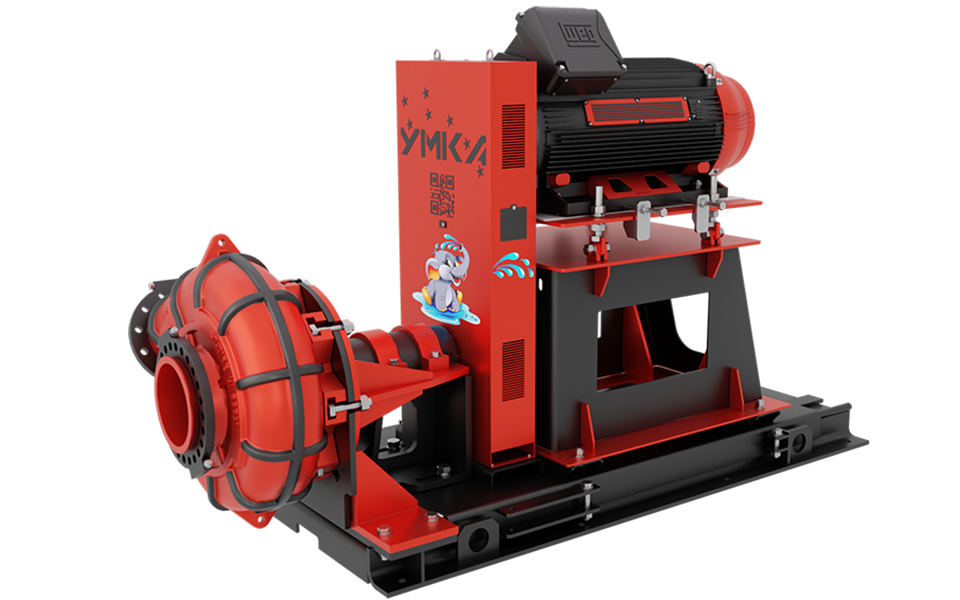

CENTRIFUGAL PUMPS

Centrifugal slurry pumps are equipped with a solid cast non-separable plate reinforced to ore loads and made of high-chromium cast iron with a content of alloying elements of at least 21%. The reinforced bearing unit is made in the metric system of units, equipped with a high-strength shaft and grease-based lubrication. The design of the pump is horizontal, cantilevered, with a snail without legs, allowing you to change the position of the pressure pipe during installation without disassembling the pump itself.

MAIN TECHNICAL SPECIFICATIONS:

   Capacity from 1000 m3

   Head from 25 m

   Pump efficiency not less than 70%

   Injection conditions backwater

   Electric motor power from 160 kW

   Solid content up to 33 %

   Density of the pumped medium up to 1.46 g / cm3

   Temperature of the pumped medium up to +40 C

   Maximum size of foreign objects up to 80 mm

    pH up to 7.1

Scope of delivery: a centrifugal pump, a set of spare parts, consumables for the first refueling, documentation in Russian (passport, installation and operation instructions, certificate of compliance with the requirements of TR CU).
