SCREENING MACHINE GVR-150
MASHKHIMPROM LLC MANUFACTURES EQUIPMENT FOR GRINDING AND CLASSIFICATION OF POWDER MATERIALS OF VARIOUS GRAINS
The vibrating screen GVR-150 is designed for dry sieving of bulk materials by size in a continuous mode.

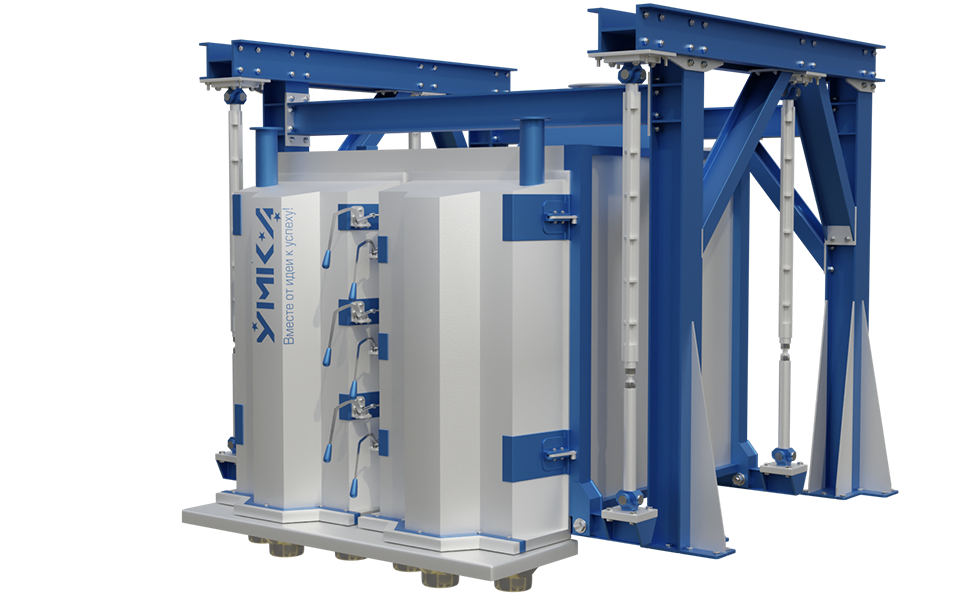

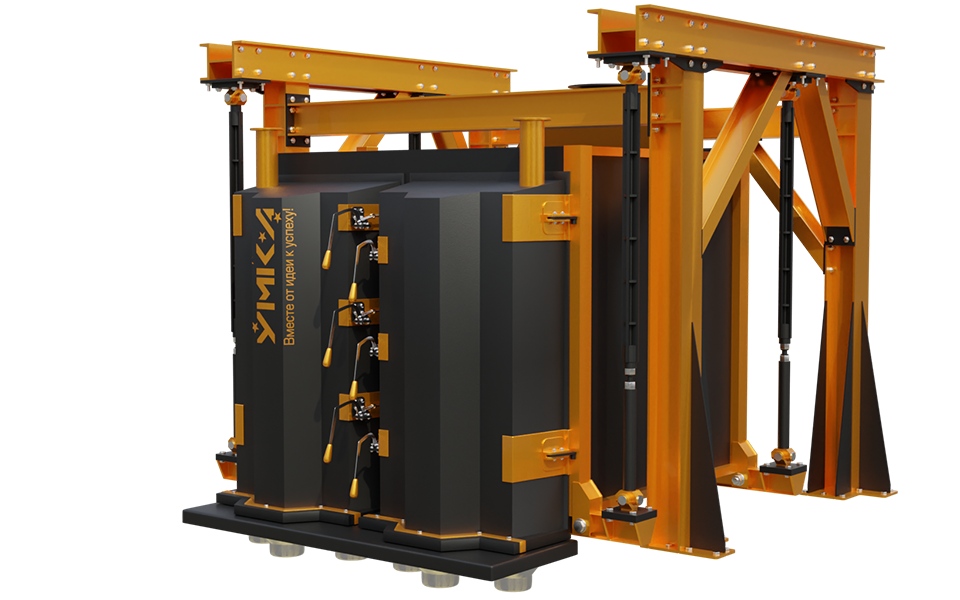

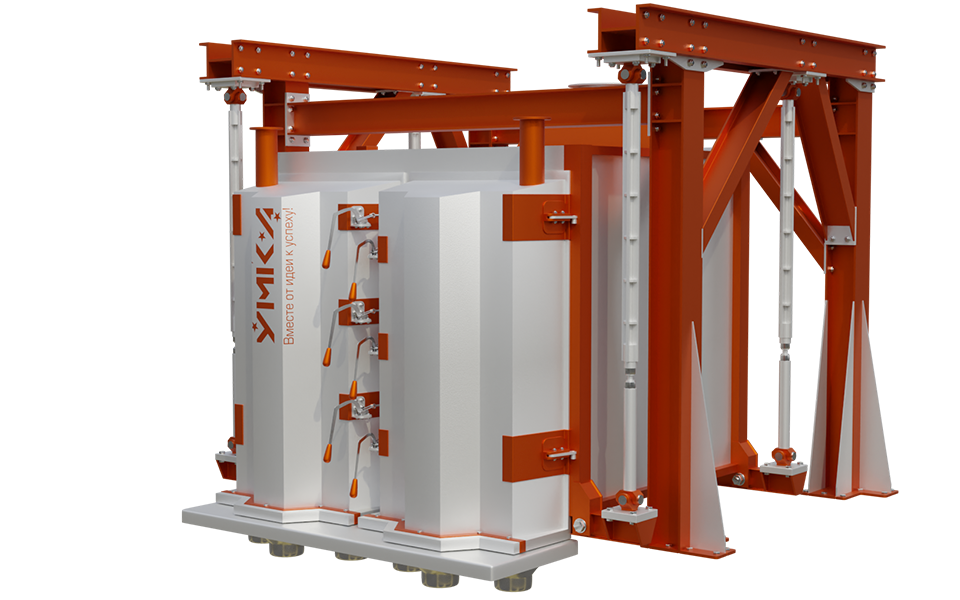

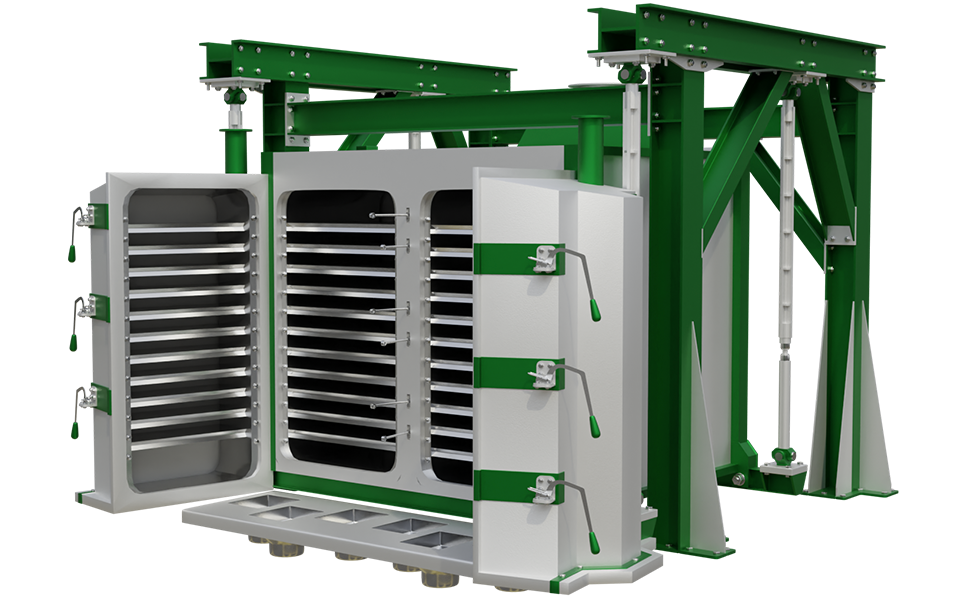

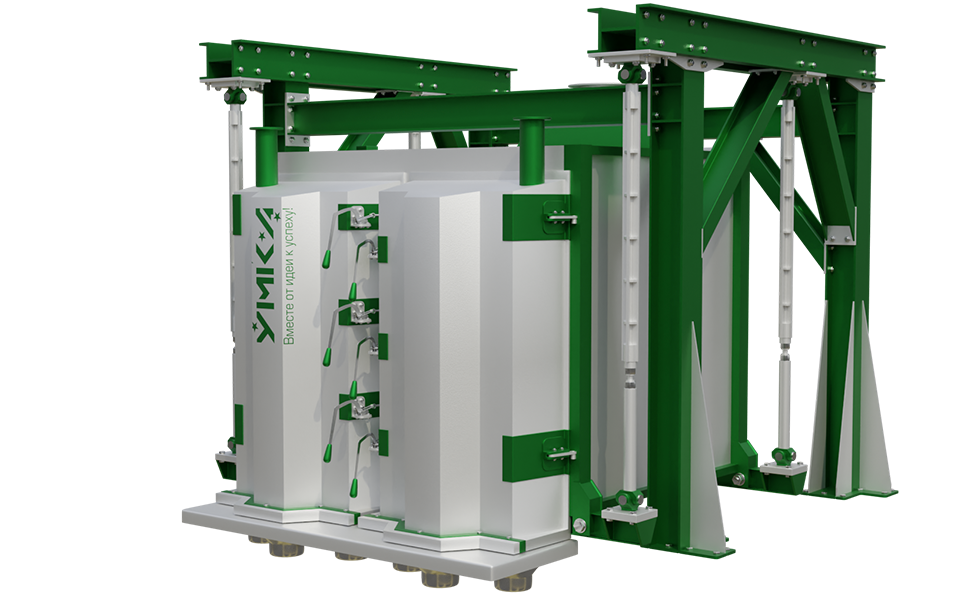

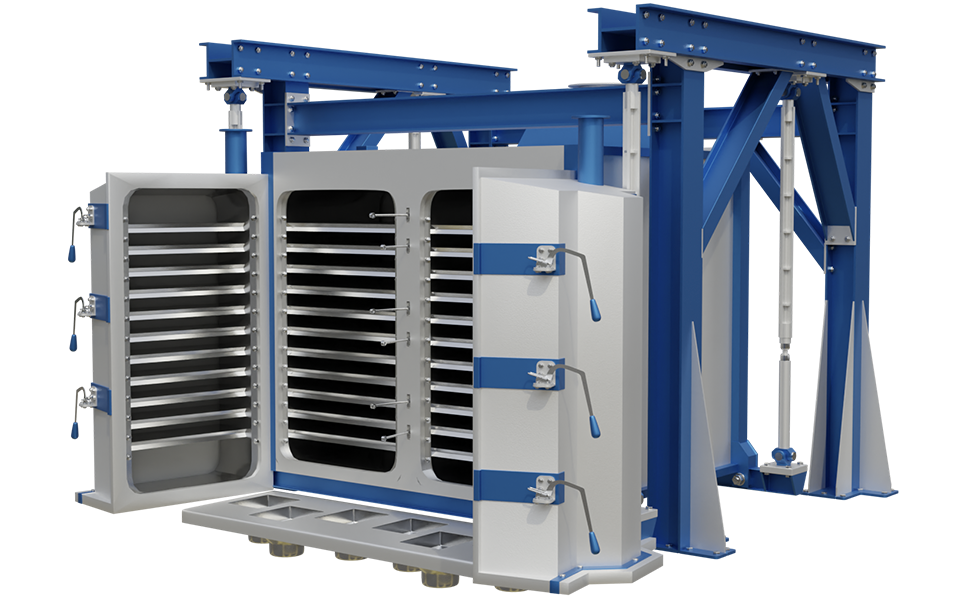

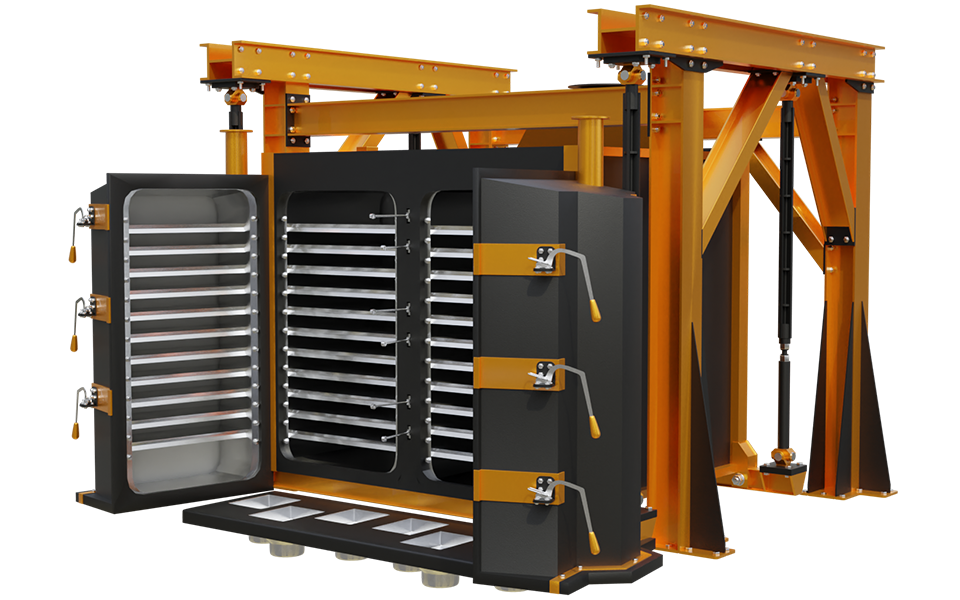

SCREENING MACHINE GVR-150
The principle of operation of the machine: bulk raw materials enter the loading chamber. A powerful electric motor transmits vibration movements to the working surfaces of the machine. Under the action of vibration, the material is distributed over the box, and small parts are sieved through the cells. They get to the lower tier of the sieve, where they pass the second selection. Large particles remain at the top.
BENEFITS AND FEATURES:
Compactness
Low dust generation due to tight design
Easy and quick access to sieves
Special design of flow distributors to eliminate unloaded areas
MAIN SPECIFICATIONS:
Parameter name
Value
Maximum productivity, t/h
115
Number of sieves, pcs.
16
Number of decks, pcs.
8
Nominal screening area of the screen for each class, m2
22,3
Overall dimensions, mm
length, no more
4928
width, no more
4400
height, no more
3100
Weight, kg
8600
