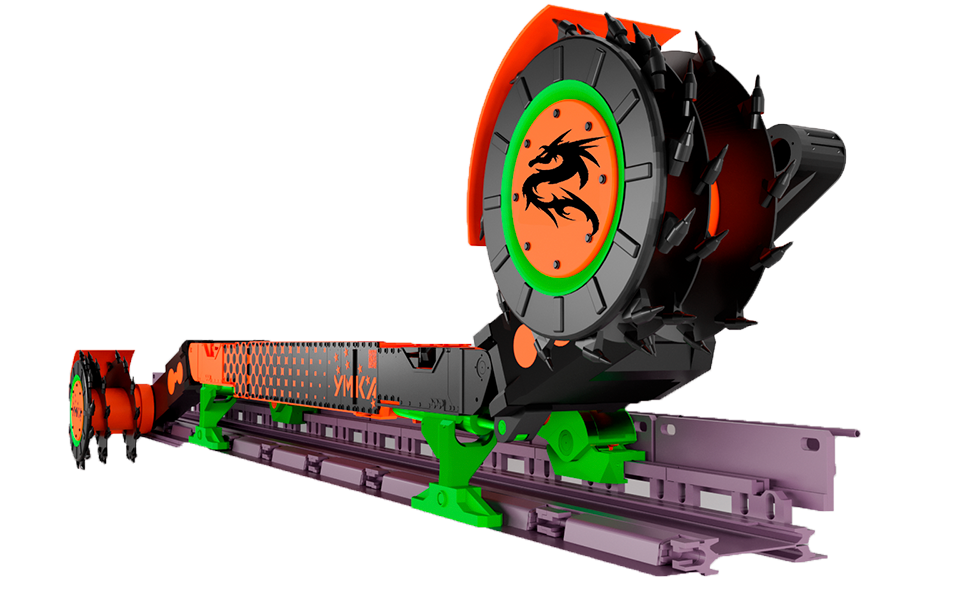

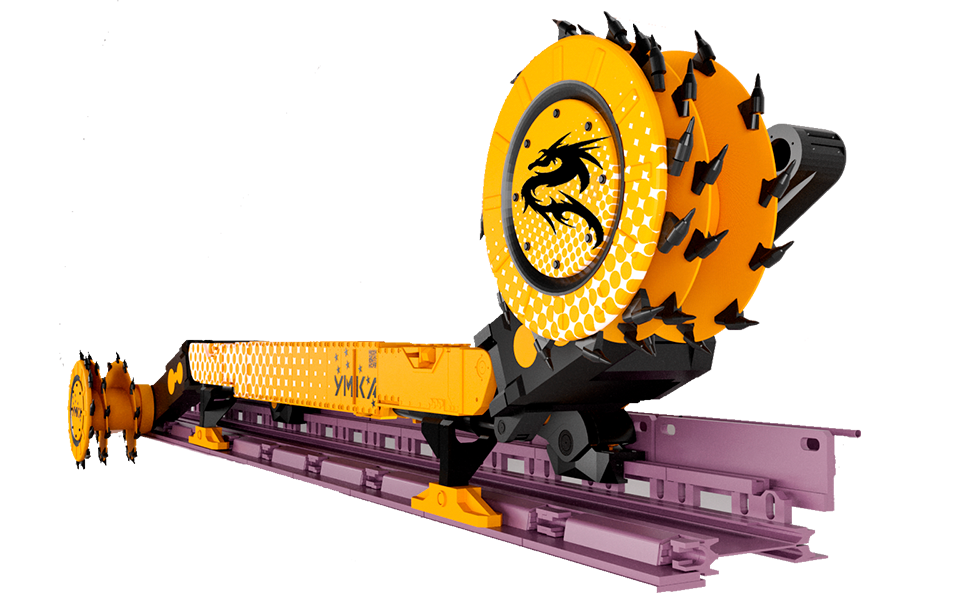

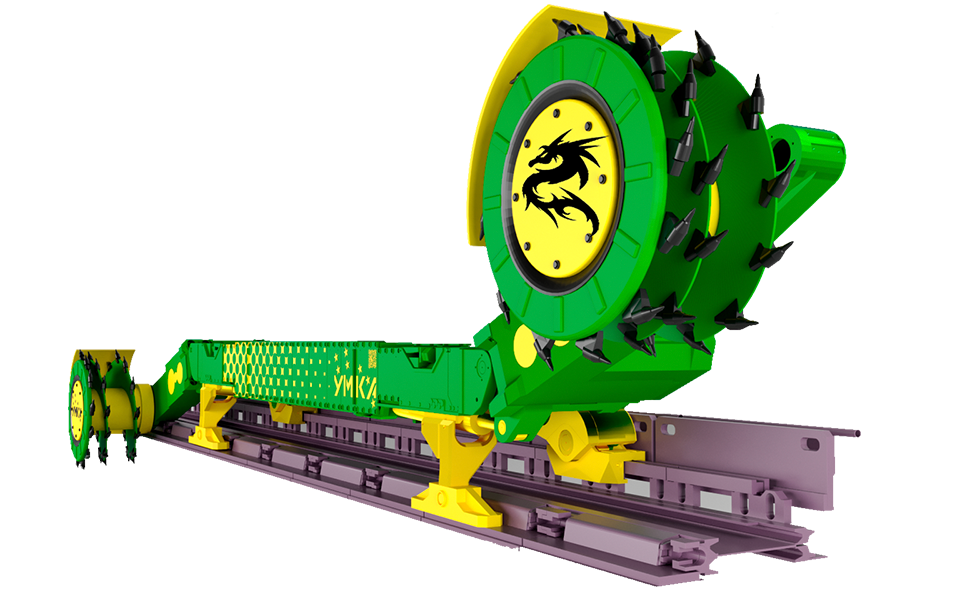

SHEARERS
WE PRODUCE SHEARERS FOR MINING INDUSTRY
OrderA shearer is designed for dredging medium and large capacity formations using shuttle or one-way operation schemes.
The formation is excavated by one or two cutting tools: the front one forms the roof, removing the layer to the full diameter of the cutting tool; the back one forms the bottom hole soil.
Both cutting bodies are equipped with protective shields.
MAIN TECHNICAL SPECIFICATIONS:
Productivity, t / min
15-30
Reservoir capacity, m
1,5-2,5
Diameter of the executive body, mm
800-2600
Nominal working width, mm
0,67-0,8
Maximum feed rate, m / min
up to 35
Maximum pulling force of the feed, kN
up to 600
Length along the axes of the executive bodies, m
12-14
Supply voltage, V
3300
Total power of the electric drive, kW
up to 1282,5
Weight, t
40-50
