SCREENING MACHINE "UMKA"
MASHKHIMPROM LLC MANUFACTURES EQUIPMENT FOR GRINDING AND CLASSIFICATION OF POWDER MATERIALS OF VARIOUS GRAINS
The UMKA screening machine is designed for separation and classification of granular potassium chloride, as well as other bulk materials of various sizes.

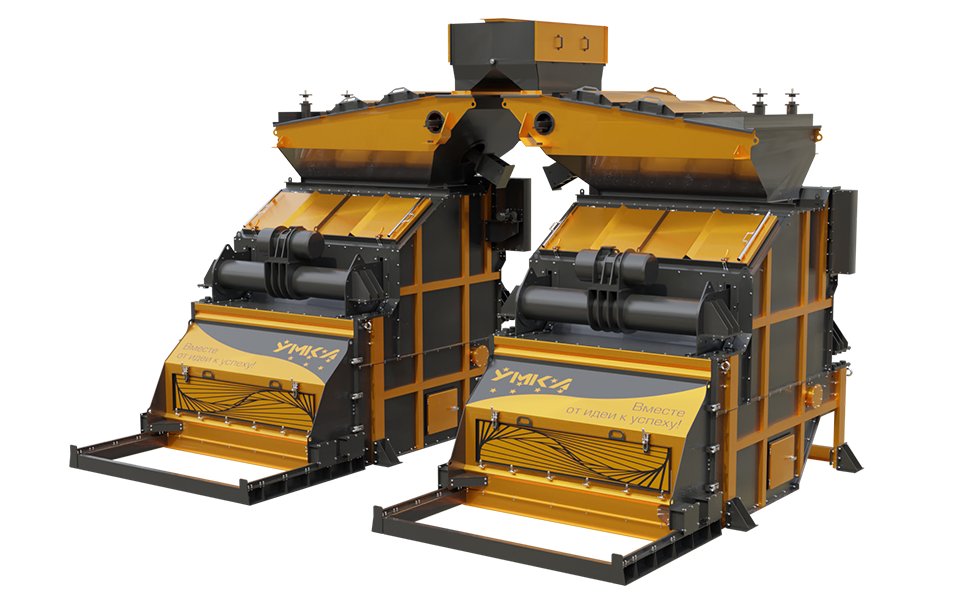

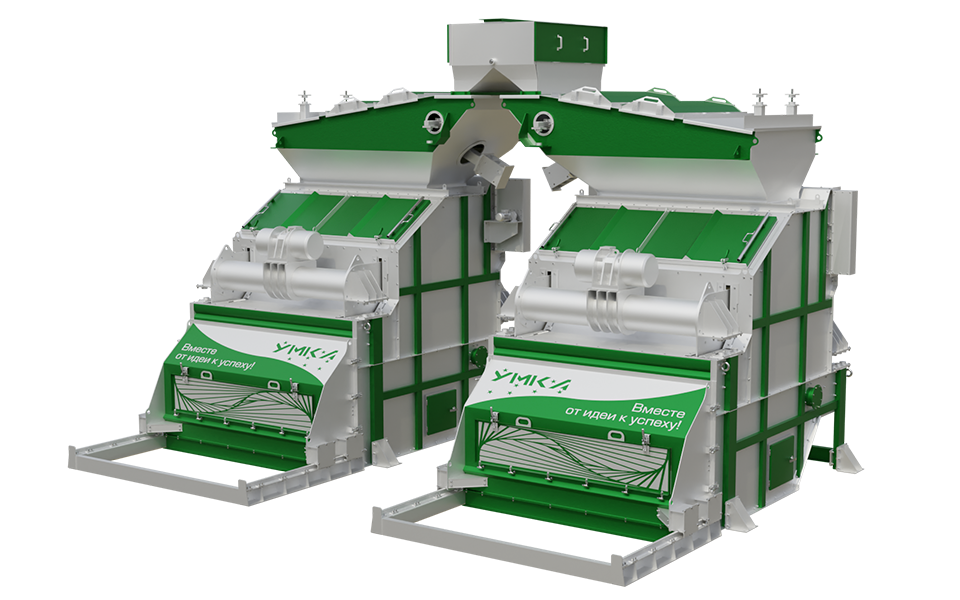

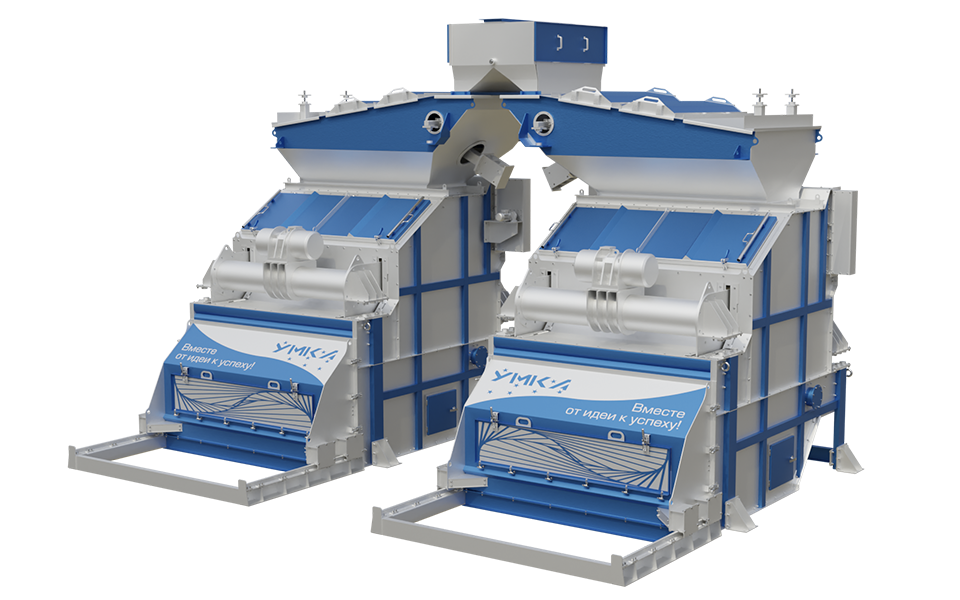

UMKA SCREENING MACHINE
The principle of operation of the machine: the screening machine is a pair of two inclined vibrating screens with a Johnson divider installed on them. Powerful vibration motors are installed outside the static body of the machine, providing vibrations of the sieving grid (screen cloth) and classification (separation) of the initial power supply into groups.
MACHINE ADVANTAGES:
Customization
High performance and precision
Easy to change sieves
MAIN SPECIFICATIONS:
Parameter name
Value
Machine structure type
pair of two machines
Drive type
screens
screening meshes
vibration motors
vibratory
Power supply frequency, Hz
50
Number of engine revolutions, no more, rpm
spreaders
sieves
for loading
for unloading
1 000
1 000
1500
Engine power, not more than, kW
spreaders
sieves
for loading
for unloading
2,2
7,5
10
Productivity, not less than, t/h
500
Weight, no more than, kg
23 000 ± 10%
Overall dimensions, not more than, mm:
length
8600 ± 10%
width
5900 ± 10%
height
5700 ± 10%
Working mode
24/7
MAIN SPECIFICATIONS:
Parameter name
Value
Machine structure type
pair of two machines
Drive type
sieves
vibration motors
screening meshes
vibratory
Power supply frequency, Hz
50
Number of engine revolutions, no more, rpm
spreaders
1000
sieves
for loading
1000
for unloading
1500
Engine power, not more than, kW
spreaders
2,2
screens
for loading
7,5
for unloading
10
Productivity, not less than, t/h
500
Weight, no more than, kg
23 000 ± 10%
Overall dimensions, not more than, mm:
length
8600 ± 10%
width
5900 ± 10%
height
5700 ± 10%
Working mode
24/7
