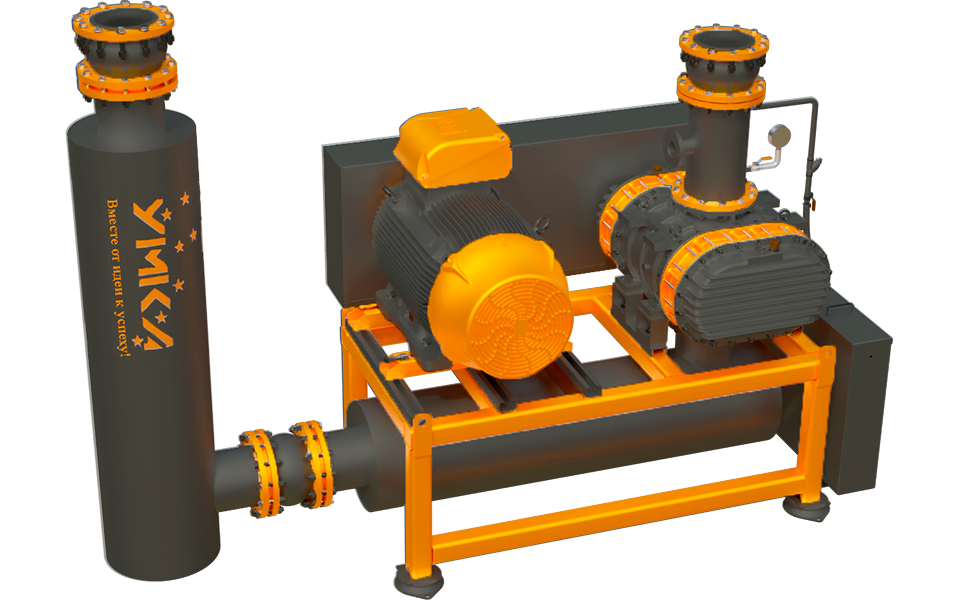

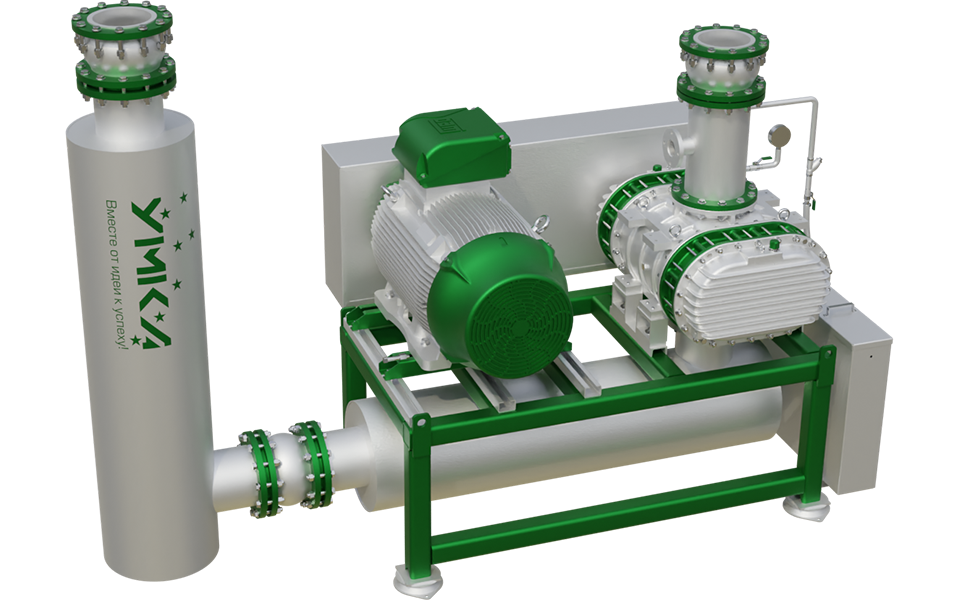

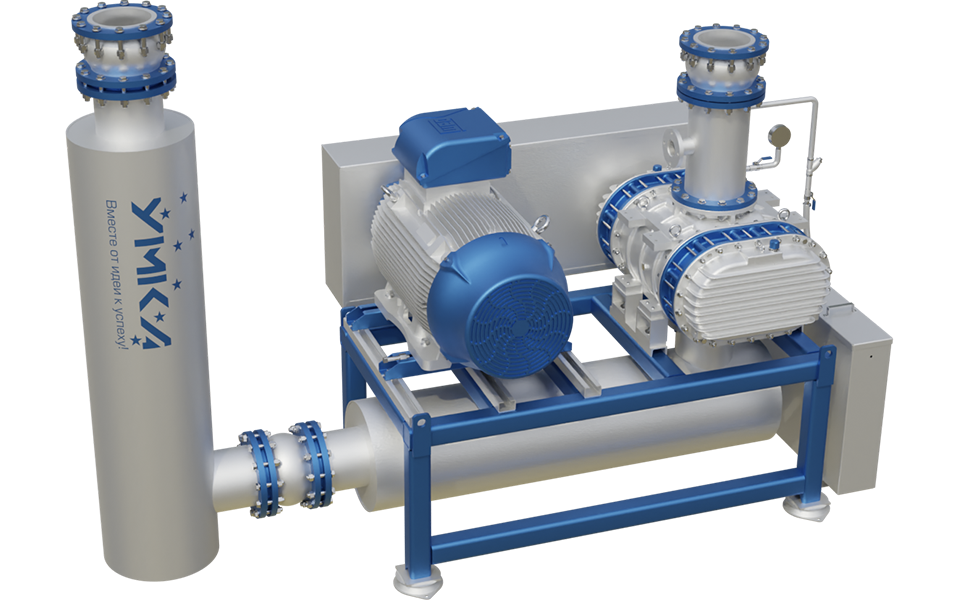

VACUUM PUMP UNIT "UMKA-6000"
MASHKHIMPROM LLC MANUFACTURES PUMPING UNITS WHICH ARE WIDELY APPLIED IN VARIOUS INDUSTRIES
Rotary vacuum pump unit "UMKA-6000" is designed to create a vacuum, pressurize and supply compressed air in the technological processes of cleaning, drying, aeration, etc.
VACUUM PUMP UNIT "UMKA-6000"
The principle of operation of the unit: an asynchronous electric motor provides rotation of the leading rotor of the blower. When the rotor rotates, the space in the suction part of the pump increases, which leads to the formation of a vacuum, the suction of the working medium into the pump housing and its transfer to the discharge side. The transmission of rotation occurs through a V-belt transmission.
ADVANTAGES OF THE UNIT:
Customization
High pumping speed
Possibility to pump out air and gases with mechanical impurities
MAIN SPECIFICATIONS:
Parameter name
Value
Working environment (gas)
air
Pressure difference at the inlet and outlet, mbar
506
Capacity, m3/h
6000
Electric motor power, kW
110
Type of drive
V - belt transmission
Rotation speed of the rotors, rpm
1500
Calculated temperature increase, ℃
96
INDIVIDUAL APPROACH TO EVERY CUSTOMER
Reach out to us any convenient way and our specialists will answer Your questions
MASHKHIMPROM - QUALITY WITHOUT COMPROMISE!
